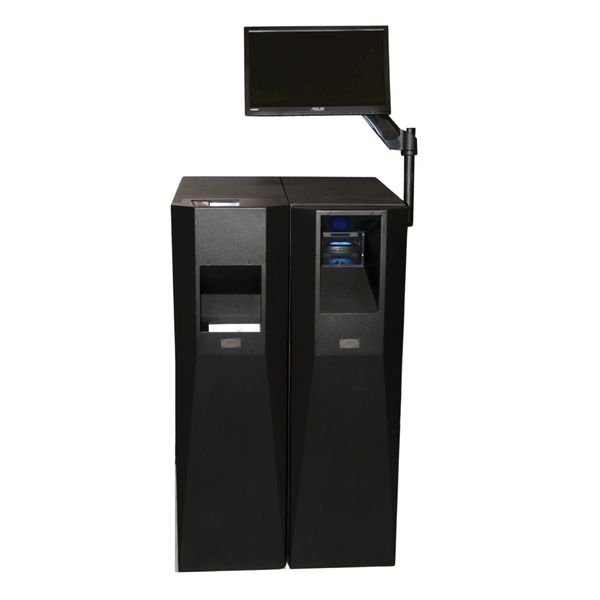

TCR-3 / TCR-4

---

 TCR-4

• Processing Speed: 2 banknotes per second / 2 coins per second
• Acceptance Capacity: Up to 30 banknotes / Up to 20 coins
• Recycling Capacity: Each recycler: 120 banknotes (two drums of 60 banknotes per recycling module), up to 4 recyclers. All denominations / Recycles 6 denominations (MXN 10 (1997)x150, MXN 5 (1992, 1996)x220, MXN 2 (1992, 1996)x320, MXN 1 (1992, 1996)x410, MXN 0.5 (2009)x500, MXN 0.5 (1992, 2008)x360, MXN 0.2 (2009)x540).
• Cashbox Capacity: 2200 banknotes / 2000 coins
• Dimensions: 676 mm long x 290 mm wide x 1011 mm high / 766 mm long x 290 mm wide x 870 mm high
• Weight: 160 Kg / 140 Kg
• Thickness: 1/4" vault with security lock

   TCR-3

• Processing Speed: 3 banknotes per second
• Acceptance Capacity: Up to 35 banknotes
• Recycling Capacity: Each recycler: 120 banknotes (two drums of 60 banknotes per recycling module), up to 3 recyclers. All denominations.
• Cashbox Capacity: 1500 banknotes
• Dimensions: 766 mm long x 290 mm wide x 870 mm high
• Weight: 155 Kg
• Thickness: 1/4" vault with security lock
